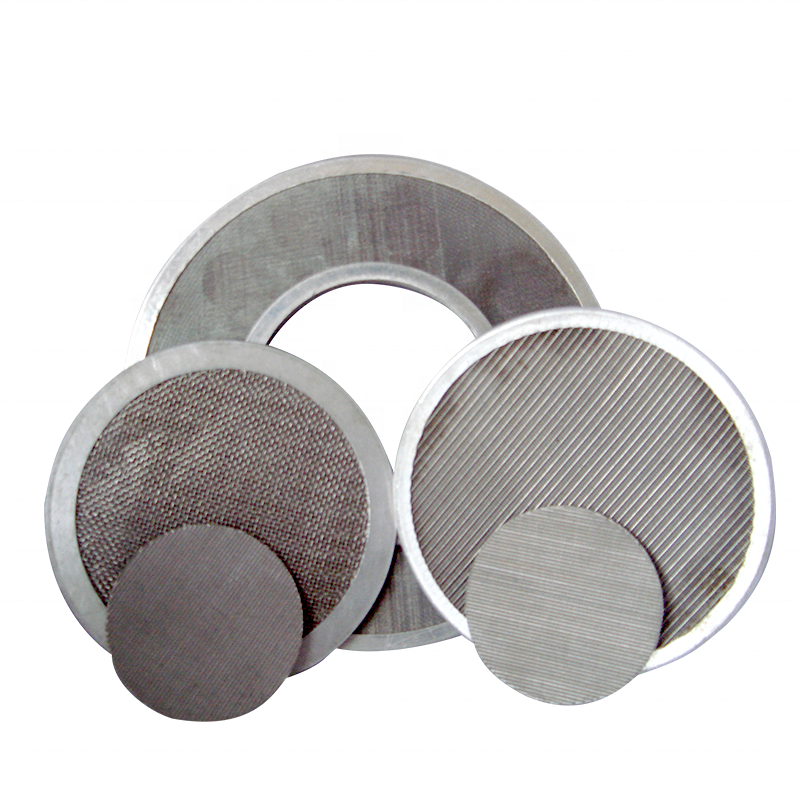

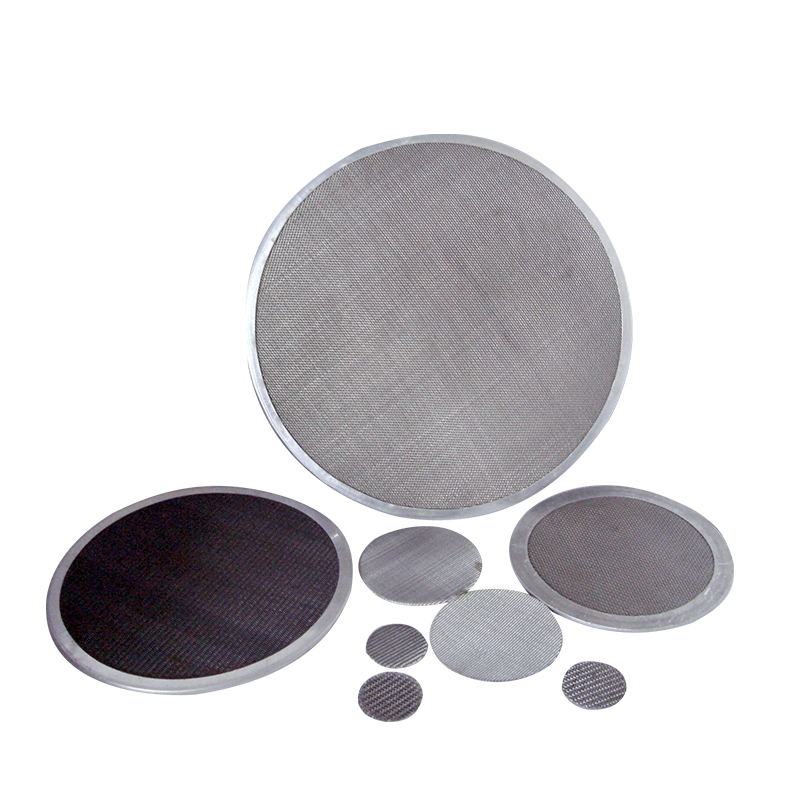

10 Micron Filter Mesh, 25 Micron Stainless Steel Filter Mesh, 60 Micron Filter Mesh

Micron size: 25 50 100 micron and customized
Size: 9"*1" /8.5"*1" diameter and customized
Shape: cylinder tube /one sealing end/two sealing end
Thickness; 0.02-1.6mm
weave style:plain,dutch
Technique: Woven wire mesh, Expanded metal mesh, Perforated metal mesh
Application: Oil or water filter,Rosin heat press machine,Food industry,Petrochemical industry
Filter tube is made of mesh by CNC punch pressing or cutting into pieces , after combination ,welding or sintering, is a filter element can be remove impurities in the medium operating equipment to work normally,to achieve a stable process .

10 Micron Filter Mesh, 25 Micron Stainless Steel Filter Mesh, 60 Micron Filter Mesh

Specification List of Filter Mesh
Mesh/Inch	Wire Gauge(SWG)	Aperture in mm
3mesh x 3mesh	14	6.27
4mesh x 4mesh	16	4.27
5mesh x 5mesh	18	3.86
6mesh x 6mesh	18	3.04
8mesh x 8mesh	20	2.26
10mesh x 10mesh	20	1.63
20mesh x 20mesh	30	0.95
30mesh x 30mesh	34	0.61
40mesh x 40mesh	36	0.44
50mesh x 50mesh	38	0.36
60mesh x 60mesh	40	0.3
80mesh x 80mesh	42	0.21
100mesh x 100mesh	44	0.172
120mesh x 120mesh	44	0.13
150mesh x 150mesh	46	0.108
160mesh x 160mesh	46	0.097
180mesh x 180mesh	47	0.09
200mesh x 200mesh	47	0.077
250mesh x 250mesh	48	0.061
280mesh x 280mesh	49	0.06
300mesh x 300mesh	49	0.054
350mesh x 350mesh	49	0.042
400mesh x 400mesh	50	0.0385
